Create Bitcoin Cold Wallet with Electrum

3 Comments 1658 Views0


Create Bitcoin Cold Wallet with Electrum IMG N01

In the Lunar New Year holidays of 2015, the Year of Goat, it’s reported that the cold wallet of BTER, one of China’s largest exchange of Altcoin, was cracked and 7170 bitcoins were stolen by hackers instantly with a heavy loss of more than 10 million RMB. The public can’t help asking how come the bitcoins were stolen even being stored in cold wallet? Bitcoin is still safe enough? The boss of BTER exchange repeatedly claimed in media reports that “passwords have been cracked”. Has cold wallet anything to do with passwords? Or the boss never knew what cold wallet was. As Xu Mingxing, creator of Okcoin, has said, “the key (for bitcoin cold wallet) is never to be connected to network.”

Now, we’d like to give the most basic introduction of cold wallet step by step by graphics as well as ways to create a cold wallet never access to network and conduct a bitcoin transaction offline.



Create Cold Wallet

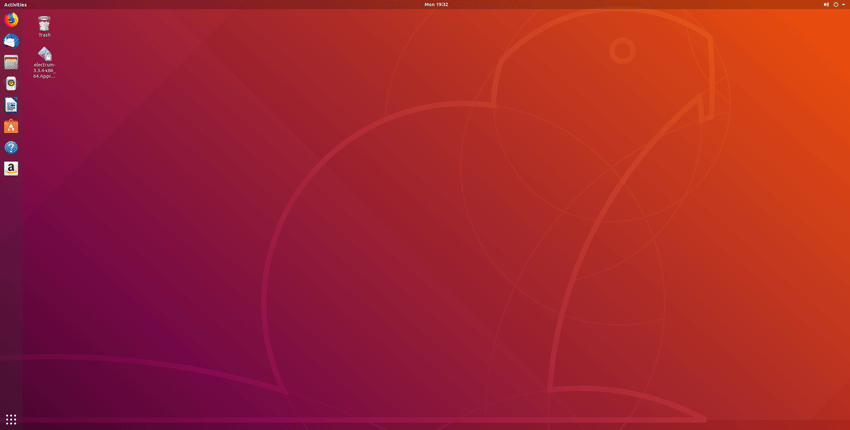

STEP 1: Find a new computer or an old computer with formatted hard disk. Make sure that the computer cannot access to network. Here we take a computer installed with Ubuntu as an example.

Create Bitcoin Cold Wallet with Electrum IMG 01

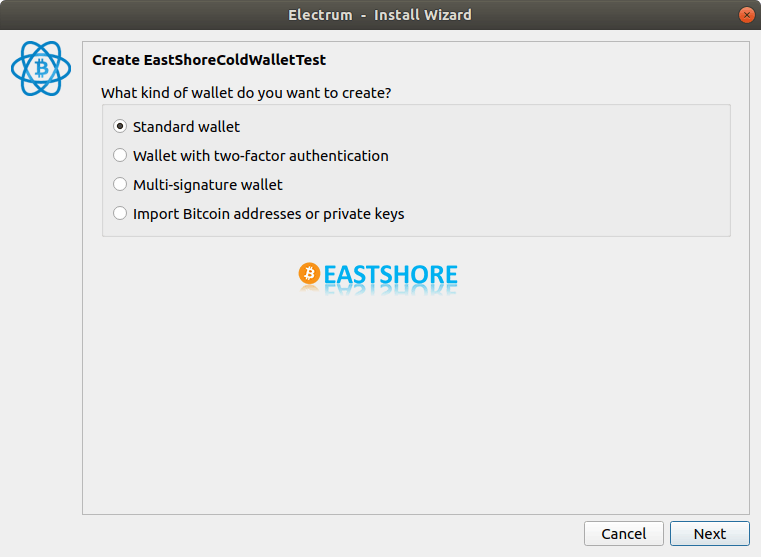

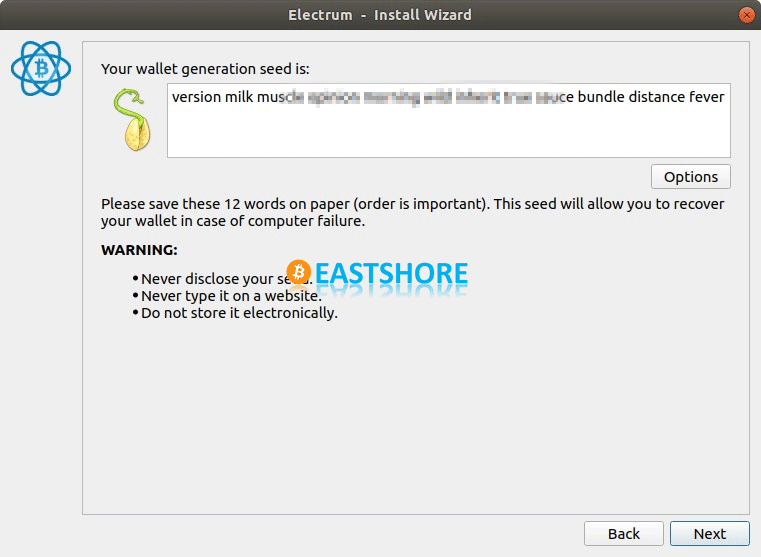

STEP 2: Install Electrum bitcoin wallet. Install Electrum bitcoin wallet offline (take Electrum as an example, other light wallets such as Multibit can also be used). For installation procedures, please refer to article Intro and Tutorial for Bitcoin Light Wallet Electrum: https://www.eastshoremining.com/intro-and-tutorial-for-bitcoin-light-wallet-electrum/

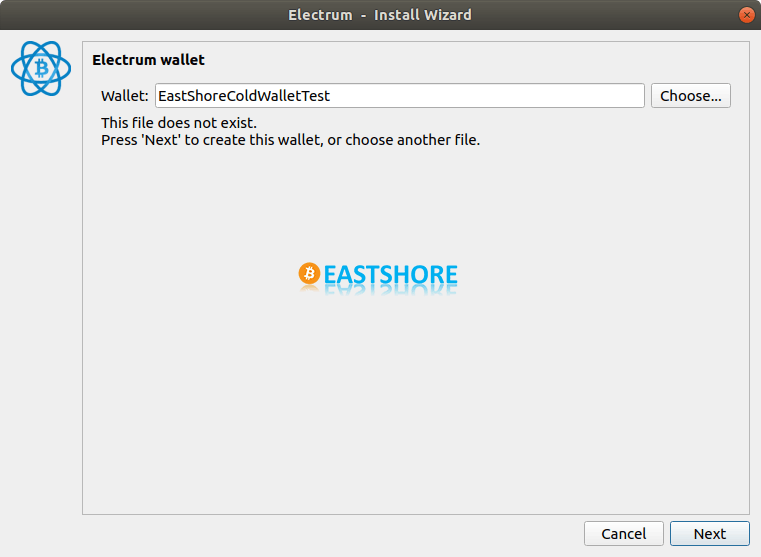

Create Bitcoin Cold Wallet with Electrum IMG 03

Create Bitcoin Cold Wallet with Electrum IMG 04

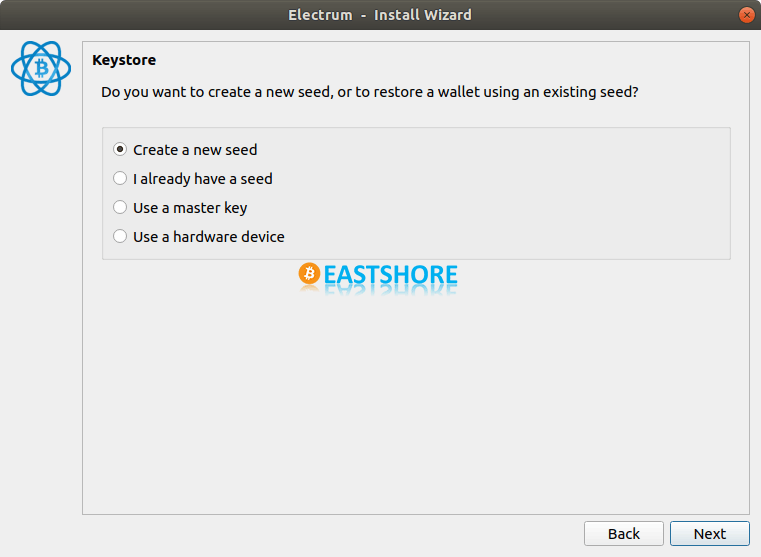

Create Bitcoin Cold Wallet with Electrum IMG 05

Create Bitcoin Cold Wallet with Electrum IMG 07

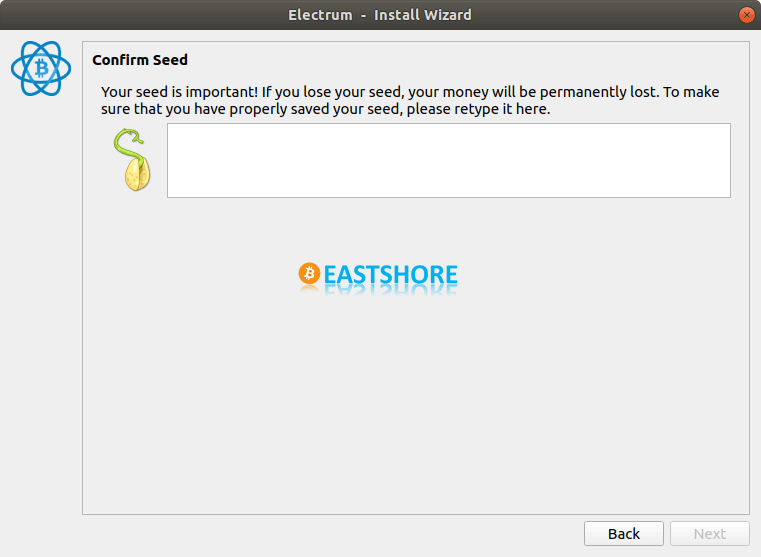

Create Bitcoin Cold Wallet with Electrum IMG 08

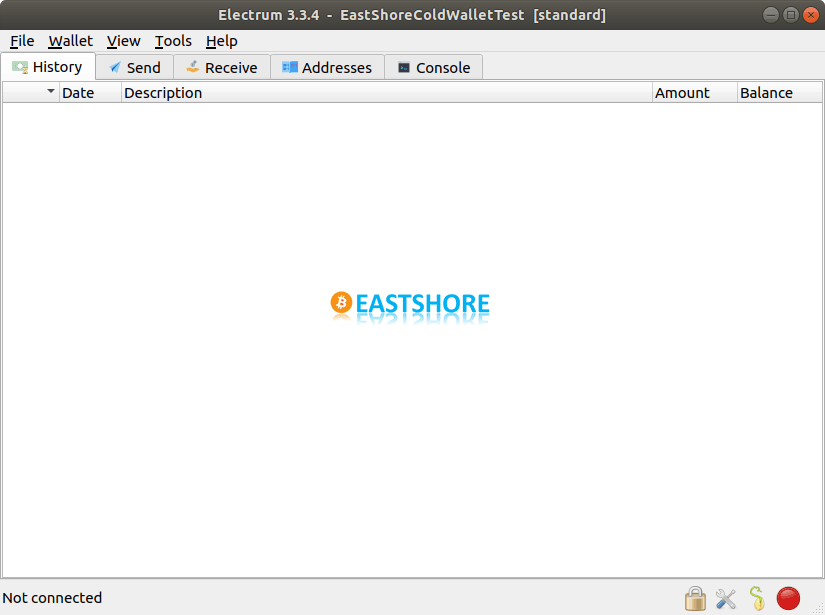

Create Bitcoin Cold Wallet with Electrum IMG 14

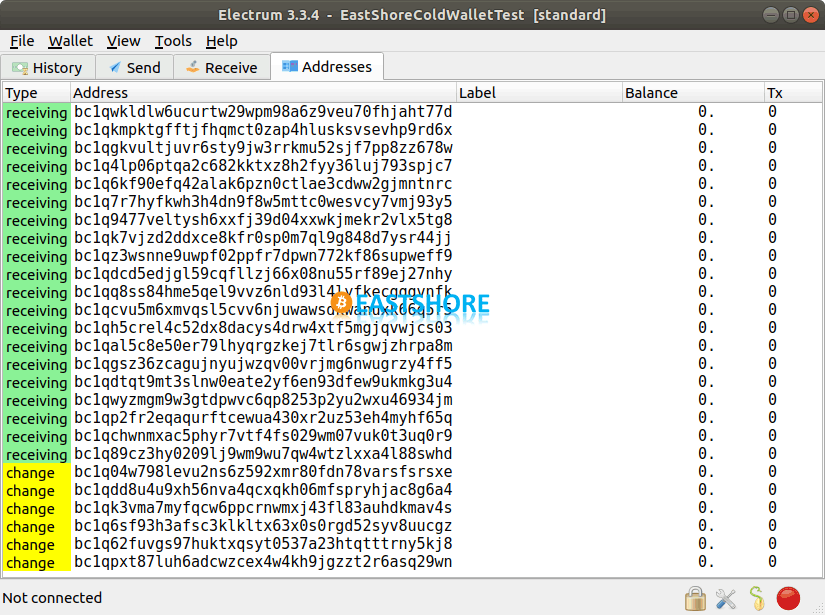

When Electrum first runs, it automatically creates some bitcoin addresses. The “Addresses” window shows all the addresses of the wallet. The private keys and corresponding bitcoin addresses are stored in the wallet of the computer never access to network. In practice, the private keys should never be revealed to anyone.

Create Bitcoin Cold Wallet with Electrum IMG 11

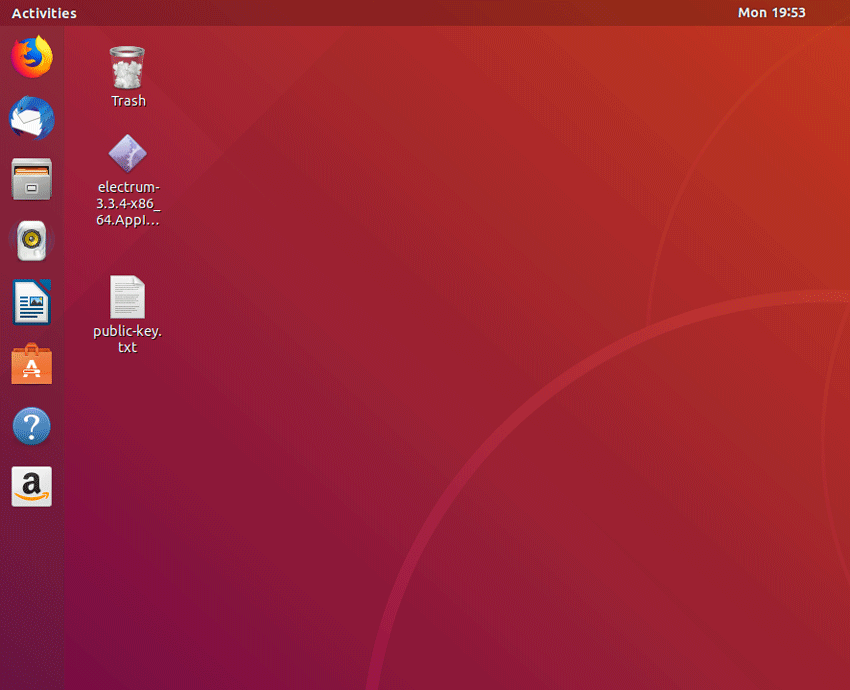

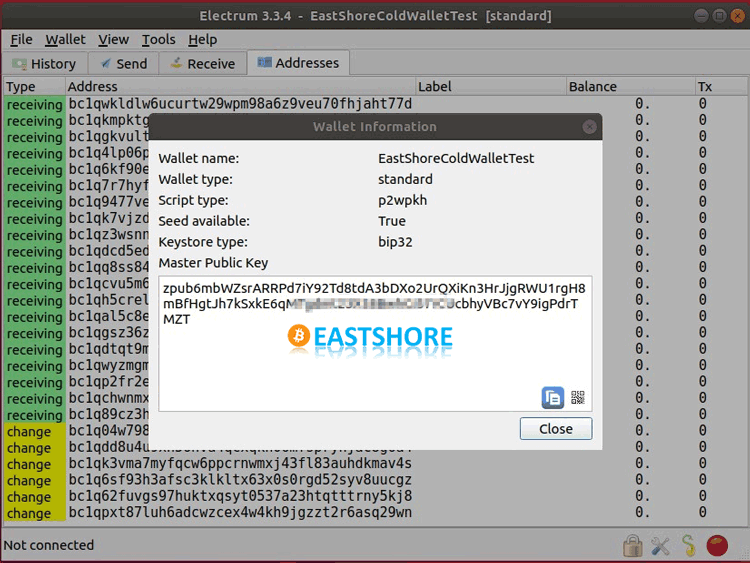

STEP 3: Get the public key from the menu “Wallet – Information”. Copy the public key and save it to a text file.

Create Bitcoin Cold Wallet with Electrum IMG 12

Create Bitcoin Cold Wallet with Electrum IMG 13

Now, we have a computer never access to network which owns one Electrum bitcoin wallet as well as some bitcoin private keys and corresponding bitcoin addresses. That’s so-called “cold wallet”.



Conduct One Offline Transaction

Now we have an offline cold wallet. It’s known as “cold wallet” because it never accesses to online when transaction is conducted. Now, let’s conduct one offline transaction.

STEP 4: Install Electrum wallet on one online computer. This step is relatively easy since it only needs to download and install Electrum wallet on another computer accessible to network.

Intro and Tutorial for Bitcoin Light Wallet Electrum IMG 16

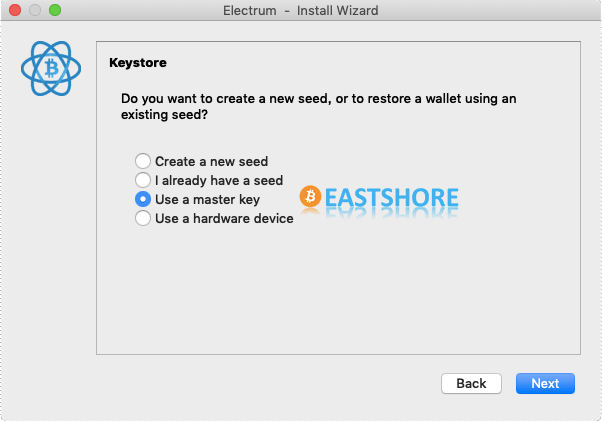

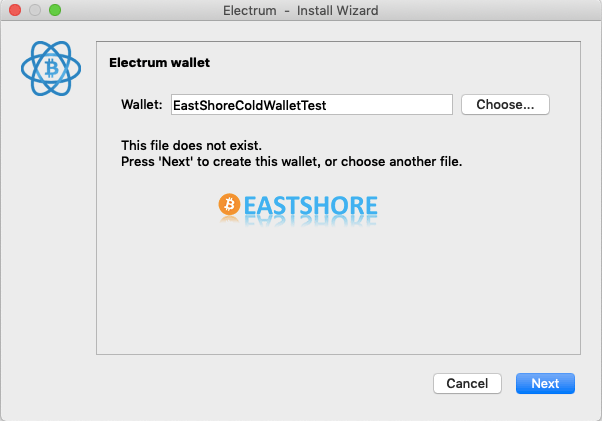

STEP 5: Create watch only wallet on this online computer. Select “Use a master key” instead of “Create a new seed” on the Keystore interface.

Create Bitcoin Cold Wallet with Electrum IMG 26

Create Bitcoin Cold Wallet with Electrum IMG 28

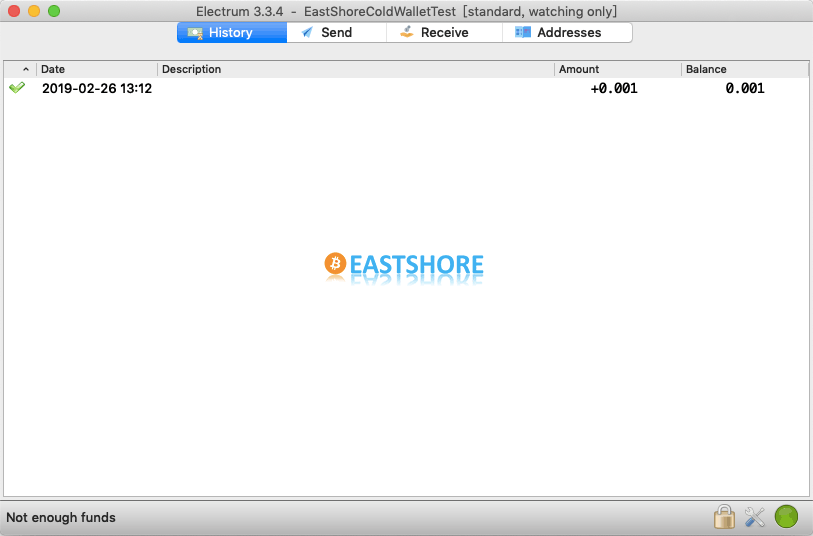

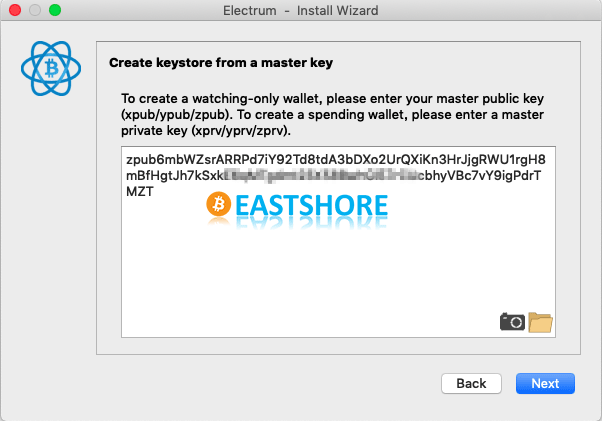

Then, input the public key obtained in STEP 3 and wait for sync between wallet and bitcoin network, the bitcoin balance of the wallet will be displayed.

Create Bitcoin Cold Wallet with Electrum IMG 29

Create Bitcoin Cold Wallet with Electrum IMG 34

We can notice that when we enter dumpprivkeys() in the Console, there’s no private key inside the watch-only wallet, which means that even if the wallet is hacked, the hacker can’t steal any bitcoins.

STEP 6: Create transaction in online computer and export it out

How to conduct transaction without private keys? As shown below, the online watch-only wallet can create a transaction, however, it has not been signed by the private key so it cannot be broadcast on the Bitcoin network.

Create Bitcoin Cold Wallet with Electrum IMG 35

The answer is: watch-only wallet can save this transaction into a .txn file to be signed by the private key installed in the wallet of offline computer. We can save the .txn file in U-disk and insert it to the offline computer with the cold wallet installed. The following steps show how to export unsigned transactions:

  • Click “Preview” on the “Send” interface.

Create Bitcoin Cold Wallet with Electrum IMG 35

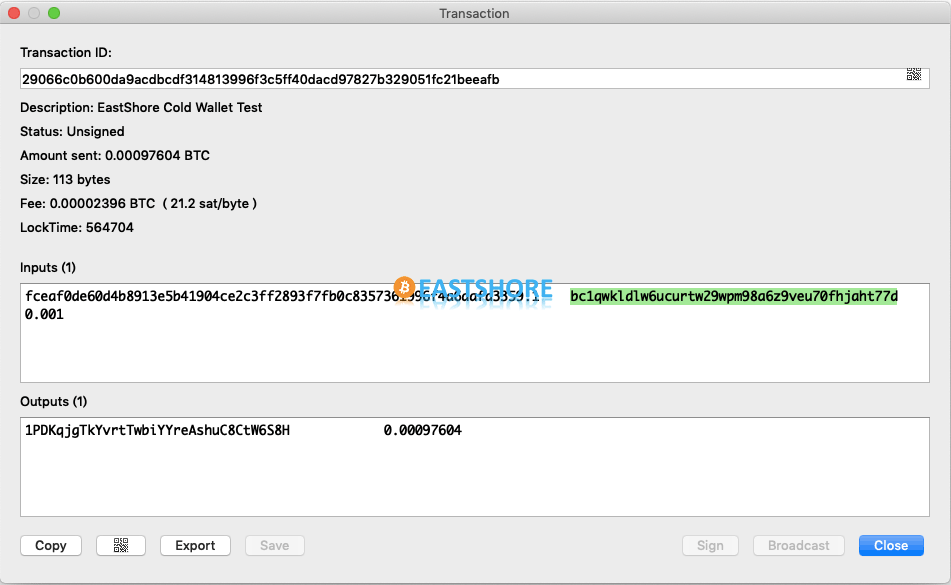

  • Click “Export” on the transaction details interface.

Create Bitcoin Cold Wallet with Electrum IMG 36

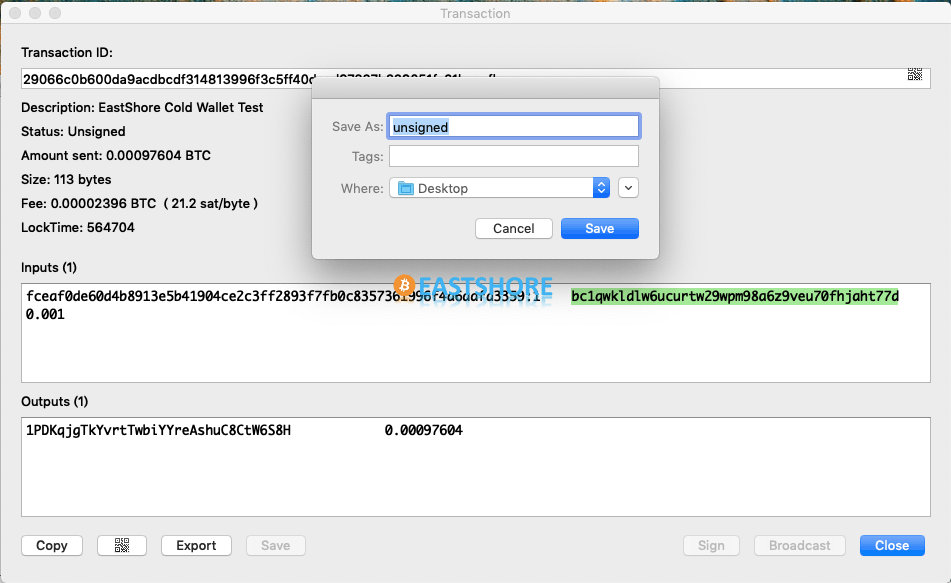

  • Click “Save”.

Create Bitcoin Cold Wallet with Electrum IMG 37

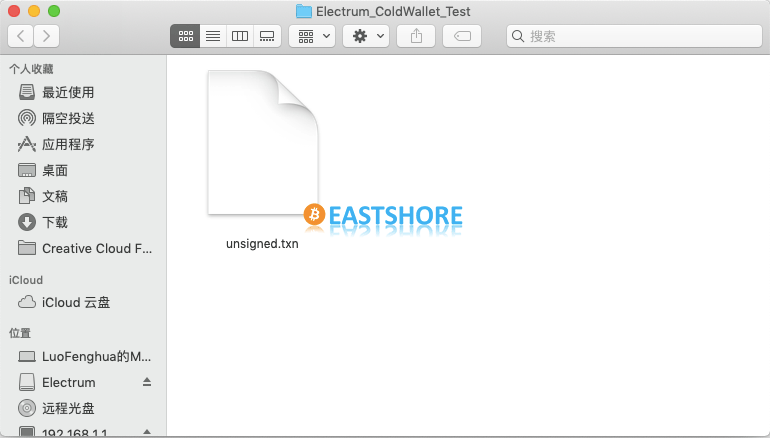

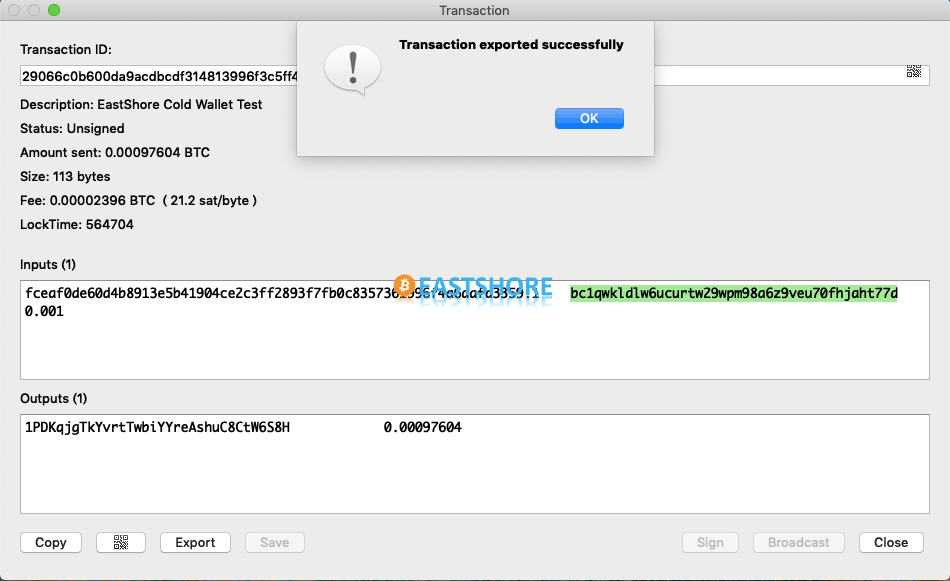

  • Then the  unsigned transaction was exported.

Create Bitcoin Cold Wallet with Electrum IMG 38

Create Bitcoin Cold Wallet with Electrum IMG 39

STEP 7: Sign transaction with private key in wallet of offline computer and export out the signed transaction.

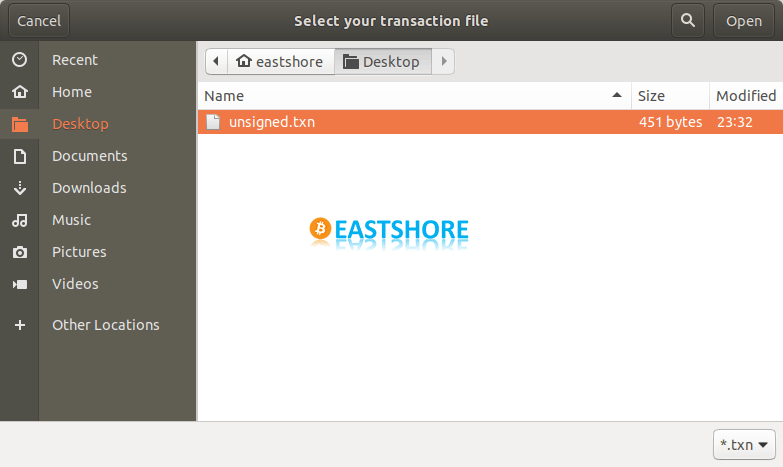

  • Copy text file with unsigned transaction to offline computer.

Create Bitcoin Cold Wallet with Electrum IMG 17

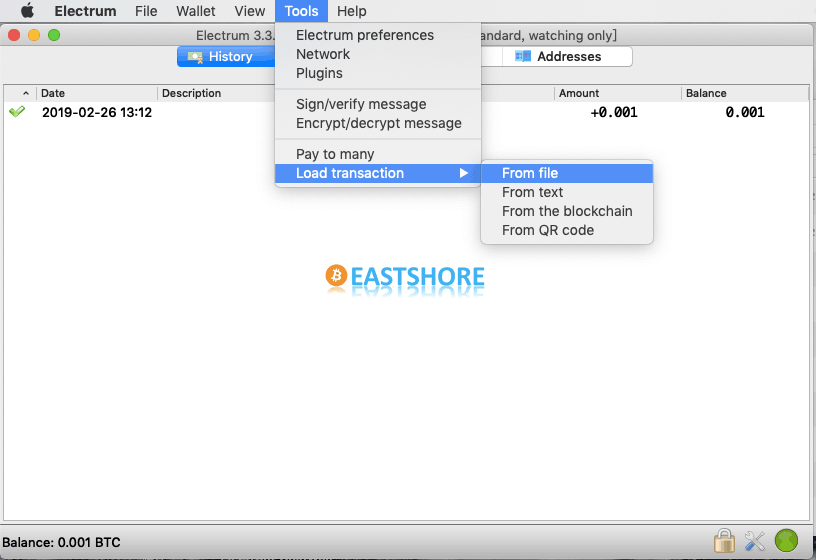

  • navigate to “Tools -> Load transaction – From file” in the Electrum cold wallet, load the unsigned .txn file.

Create Bitcoin Cold Wallet with Electrum IMG 41

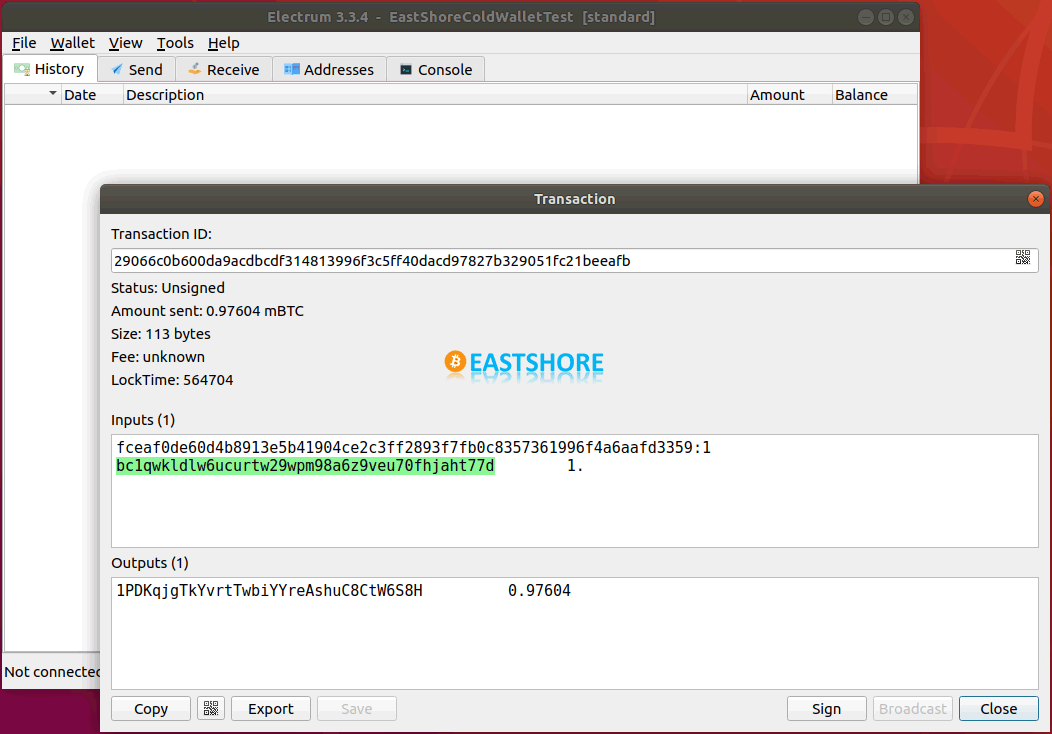

  • Click “Sign”.

Create Bitcoin Cold Wallet with Electrum IMG 18

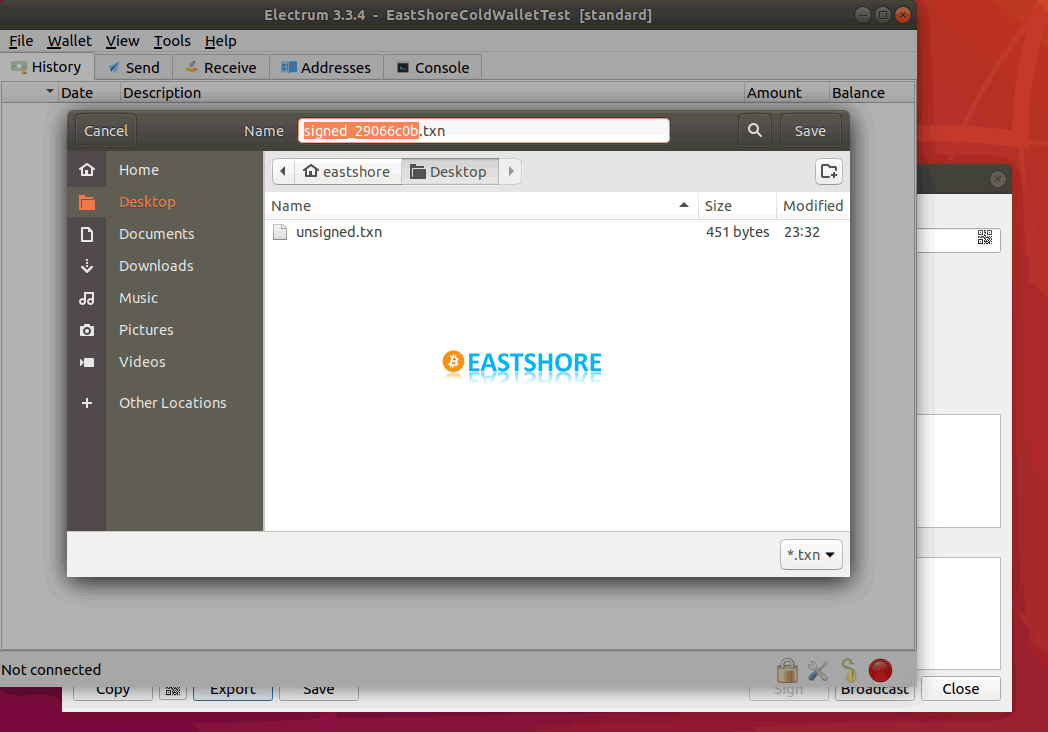

  • After signature, the transaction cannot be broadcast in bitcoin network since the computer is offline, so just save the transaction as .txn file again.

Create Bitcoin Cold Wallet with Electrum IMG 23

STEP 8: Broadcast the signed transaction in online computer

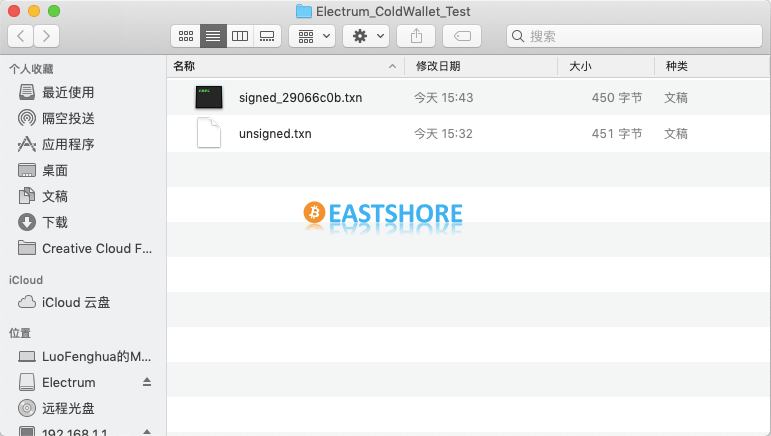

  • Use U-disk to copy the signed .txn file back to online watch-only wallet.

Create Bitcoin Cold Wallet with Electrum IMG 40

  • Load transaction.

Create Bitcoin Cold Wallet with Electrum IMG 41

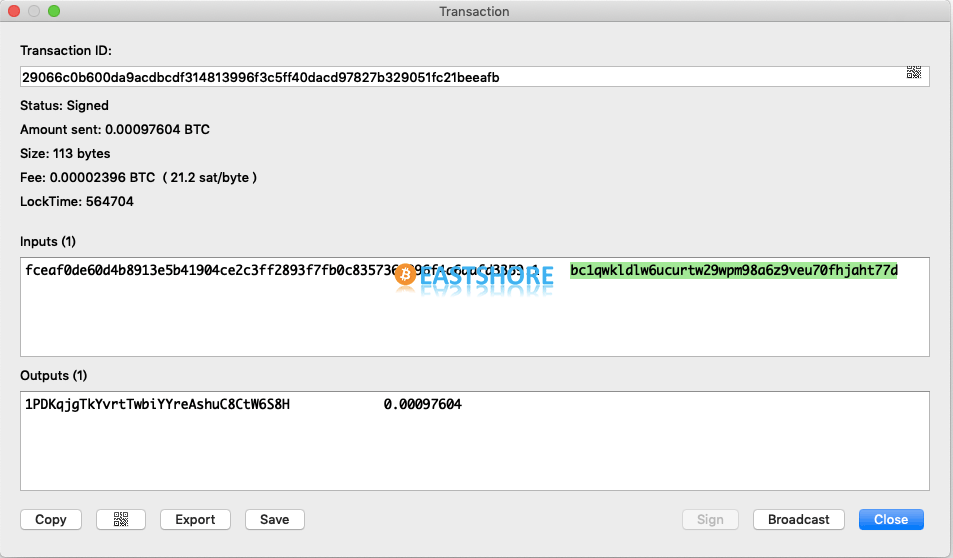

  • Click the “Broadcast” button.

Create Bitcoin Cold Wallet with Electrum IMG 43

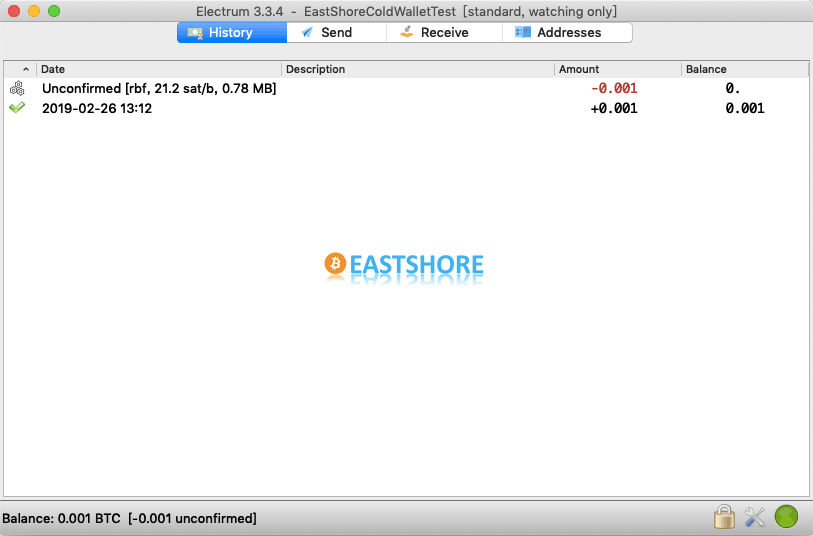

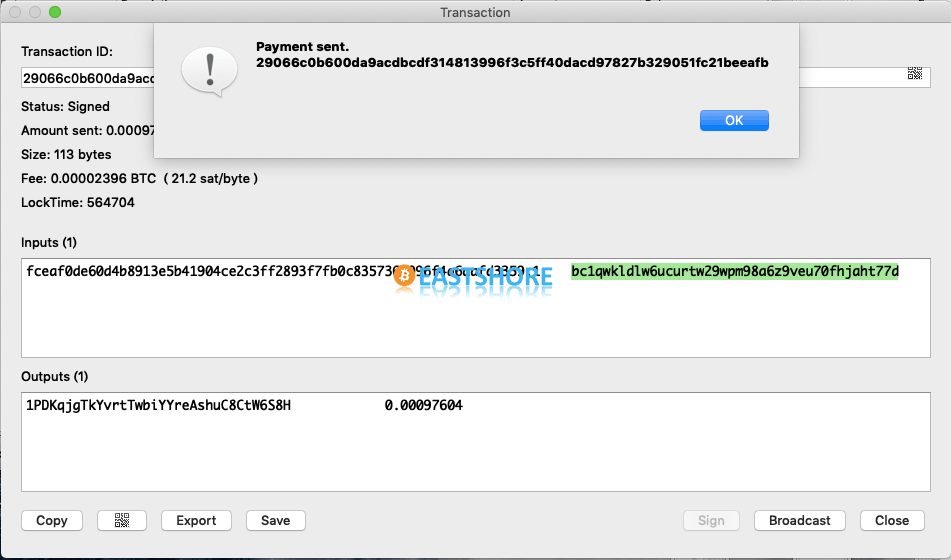

  • Transaction completed.

Create Bitcoin Cold Wallet with Electrum IMG 44

Create Bitcoin Cold Wallet with Electrum IMG 45

Now, the bitcoin transaction has been successfully completed in an offline computer with private key. Except for transaction signature, the private key is not involved in the entire process and the so-called “password” will never show up.

Someone may complain that “it’s too complicated”. However, in the world of bitcoin, security always enjoys the priority compared with convenience. Secondly, cold wallets shouldn’t have frequent transactions, otherwise it is not “cold” at all.



Summary

It’s only a cold storage solution for large bitcoin of individuals instead of the enterprise-level cold wallet solution such as Bitcoin Exchange and Bitcoin Bank, which is a complex system demanding multi-layer hot and cold wallets with multi-signature technology as well as personnel management.
