Review on Programmable Wireless Silent FPGA Miner AGPF SK1

Rating 2 Comments 2559 Views8

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 00

Good news for FPGA mining workers with requirements on noise and portability. EastShore is offering a new product —- FPGA programmable miner,  AGPF Sk1 for short. This article will introduce the miner and evaluate its performance.

What’s FPGA?

FPGA is short for Field-Programmable Gate Array and it came into being as a semi-customized circuit in the field of Application Specific Integrated Circuits (ASIC). It solves the disadvantages of the customized circuits as well as the limited number of gates in original programming devices. The biggest perk of FPGA miners is that it can switch to different mining algorithms with the programmable chips in the same way of the GPU miners .

Product Specifications

Brand AGPF SK1
Algorithms Amoveo, Hyundai DAC, Boolberry, Dagger etc.
Coins Suppoted Amoveo (VEO), Hyundai DAC (HDAC), Dagger (xdag) etc.
Power Interface 6PIN x 1
Network wired and wireless network
Power Supply NO power supply
Product link FPGA Miner AGPF SK1

All cryptocurrencies developedd on Veo, Skunk and xdag algorithms can be mined, such as Amoveo (VEO), Hyundai DAC (HDAC), Dagger (xdag) and so on. Subsequent firmware upgrades will support verus and vbk algorithms as well as other algorithms.

Algorithms Supported:

Wireless Silent FPGA Miner AGPF SK1 Algorithms Supported Table

Test Video

Exterior Appearance

AGPF sk1 is packed with industrial cardboard, the size 175*100*116mm and the weight 450g.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 01

The AGPF sk1 is wrapped with air bubbles to reduce damage risks during transportation.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 04

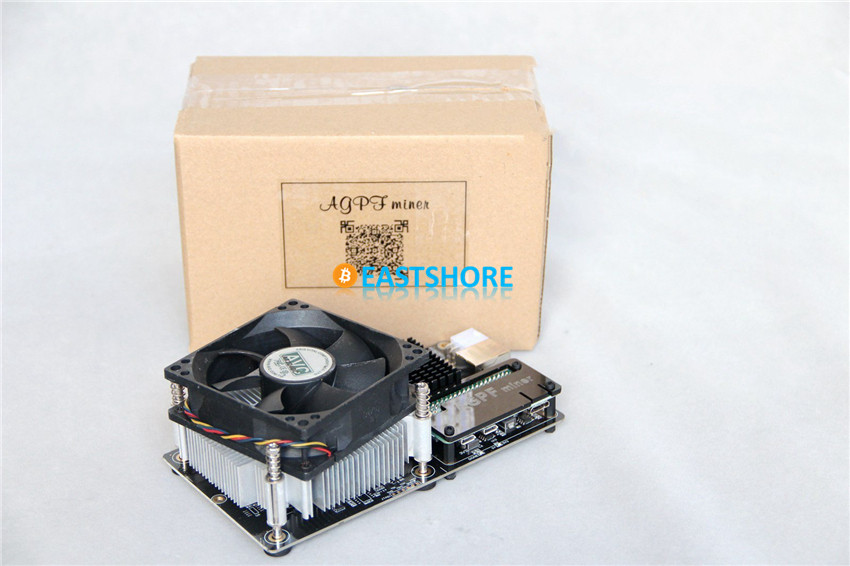

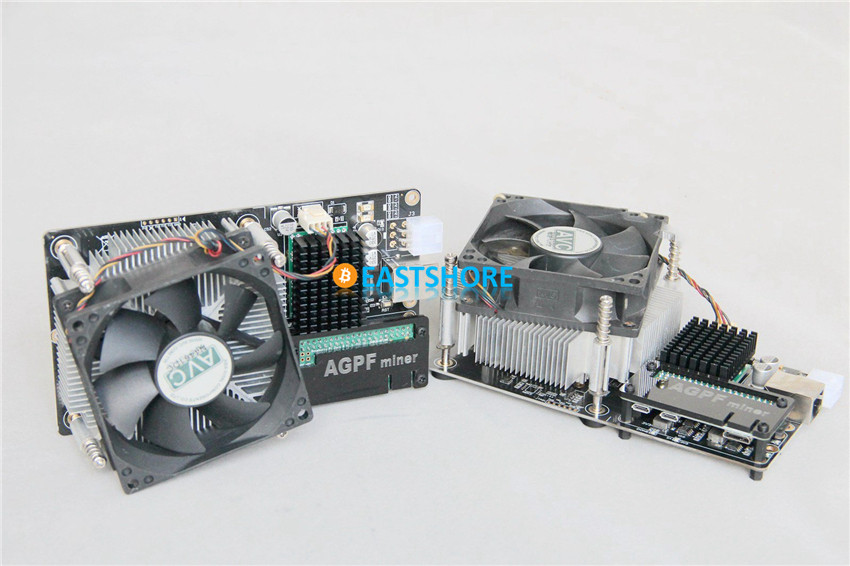

There it is, the AGPF sk1 . The size is 166*90*58mm and the weight is only 400g.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 06

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 03

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 05

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 02

AVC fan is adopted for heat dissipation which is compatible with 1150 CPU fan.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 12

AGPF sk1 supports both wired and wireless network connection, which allows for great convenience for installation in larger quantities.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 08

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 09

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 10

The controller adopts the Raspberry Pi Zero W, which uses a 1GHz single-core CPU and 512MB RAM with a Mini-HDMI interface and a Micro-USB interface for data transfer, a Micro-USB interface for power supply. It supports wireless and Bluetooth connection and one 16G TF card is also provided with the machine.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 16

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 17

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 11

The IC chip of AGPF sk1 adopts Xilinx single core with the model XC7K420T.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 15

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 13

The power supply of AGPF sk1 adopts the most common 6pin interface, the power consumption officially released is about 80W, so ordinary ATX power supply is applicable, it’s very simple and convenient.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 19

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 14

User Experience

The AGPF sk1 can run simply by connecting to the Ethernet and power supply.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 18

Just like ASIC miners such as Antminer and Avalon, AGPF sk1 supports webpage management, firmware and algorithm upgrades very conveniently. The SK1 boot image file adopts the wired connection by default (the wireless function should be turned on separately) and the IP address can be obtained automatically after accessing to the router. It will find the miner IP address by router access or software scanning (please refer to the tutorial: How to find out the IP address of your crypto miner), and then enter the searched IP address into the browser to open the login page.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 27

AGPF sk1 supports wireless network, which can be installed very conveniently without worrying about the layout of network cables. Enter the network/wireless page, click SCAN to scan WIFI, select the scanned WIFI and enter the password to complete the setup. Click ENABLE to enable the wireless hotspot for phone connection. Click EDIT to enter the editing page.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 25

Default username is “root” and enter the default password “admin” to enter the configuration  page.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 20

The homepage shows the current version and hardware status of the miner. First of all, upgrade the program to help miner optimization and get the newly unlocked currency.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 22

It’s the page to verify, which will prompt the MD5 values of the upgrade file for verification. Confirm the integrity and click the PROCEED button in the lower right corner to confirm the upgrade. Do not cut off power supply during the upgrade process, otherwise, the system files may be damaged and the system cannot be started.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 29

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 30

After the upgrade is completed, access to the Pools tab under the Miner list, select the mining configuration profile, or enter your own wallet address and password on the page. Enter the name of the configuration file in the left corner of Pools [_______ ADD] and click ADD to generate the configuration, then set the pool, wallet address and password, click save. Once the configuration has been completed, the algorithm and the pool can be switched very conveniently.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 21

On the Status tab, current performance can be monitored.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 23

Interface of Hashrate status

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 33

As for the temperature of AGPF sk1, the heat sink is 39.5℃ and the mainboard is 36.6℃.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 34

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 36

The highest power consumption is VEO mining. If Antminer APW power supply is adopted, it’s 88W; if Great Wall Dragon Gold power supply is adopted, it’s 85W.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 35

Summary

The AGPF sk1 is a product supports variable multi-algorithms. Its current firmware is version 0.1.5 and it supports crypto currency mining of three algorithms such as Veo, Skunk and xdag. In the future, it will support verus and vbk as well as other algorithms.

Wireless Silent FPGA Miner AGPF SK1 Algorithms Supported Table

AGPF SK1 supports algorithm online upgrading and the released algorithms can support acceleration.

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 24

Apart from supporting multiple algorithms and currencies, its hashrate is also more powerful than that of GPU miners. For example, the speed of veo algorithm exceeds that of 1080ti and the xdag algorithm, which is equivalent to the speed of 2-3 RX470 graphics cards, while the price and power consumption are more favorable than that of the GPU miners.

A minor drawback which can easily be improved is a metal shield should be added to the cooling fan.

AGPF sk1 is small in size with the power consumption of less than 100W. It supports wireless network and can enable wireless hotspot. Moreover, due to its ultra-low noise, it’s perfect for mining workers with requirement for flexibility. The mining workers can learn from each other, or rent hashrate on the nicehash.

Appendix: Some Mining Currency

Amoveo[VEO]

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 26

Graph Credit: pickacrypto.com

Hyundai DAC[HDAC]

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 31

Graph Credit: icoalert.com

Dagger [xdag]

Evaluation on Programmable Wireless Silent FPGA Miner AGPF SK1 IMG 32
