Intro and Tutorial for Antminer E3 180MH Ethereum Miner

Antminer E3 is a product released in April 2018 by Bitmain. It is developed to mine cryptocurrencies based on Ethash algorithm. This Antminer E3 is the first ASIC Ethereum Miner in the world. It hits a speed of 180MH for Ethash mining with the power consumption of 800w which makes it undoubtedly a pioneer machine in the field.



Product Specifications

Brand Antminer E3
Algorithm Ethash
Hashrate 180MH/s ± 5%
Power Consumption 800w
Power Supply NO PSU, a PSU > 900w (with 6PIN x 10) Needed.



The design

The E3 miner has a slightly different look from Bitmain’s other models. It is about twice the height of other regular models.

Intro and Tutorial for Antminer E3 IMG 01

It is installed with 2 fans on one end and a cooling net one the other end.

Intro and Tutorial for Antminer E3 IMG 02

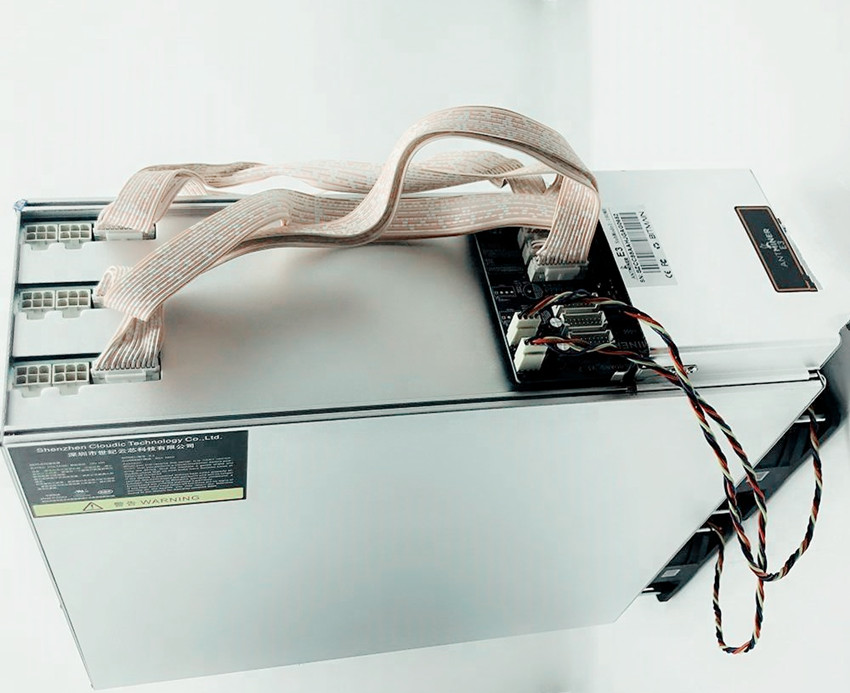

As the typical design of other Bitmian models, it has 3 hash boards and 1 control board.

Intro and Tutorial for Antminer E3 IMG 03



Getting Ready

For this test run, we are using APW7 power supply and mining ETH in the Antpool.

  • Hardware: E3 miner, APW7 power supply, ethernet cord, power cable and computer (for configuration)

Intro and Tutorial for Antminer E3 IMG 04

  • A valid wallet address: for example, 0x54b2a793dea260599ea867d5dcc103d696f93157. A valid wallet address is very important, because it’s for receiving your mining earnings.



Connection and IP Scan

For connection and IP scan, please refer to ANTMINER GENERAL MINING GUIDE: https://www.eastshoremining.com/tutorial-general-mining-guide-troubleshoot-for-antminer-models/



Pool and account settings

The Antpool supports 2 modes of ETH mining which have different settings, and different ways to check the earnings history.

1. Using sub-account in Antpool

  • Click “Miner Configuration” to enter the configuration page.
  • Configure the “URL“, “User” and “Password” as below:
URL: pool address
User: 0x0000000000000000000000000000000000000000(42digits, this step is necessary)
Password: your sub-account in the pool and the miner number.

Intro and Tutorial for Antminer E3 IMG 05

  • Correct settings example:
URL: stratum-eth.antpool.com:8008
User: 0x0000000000000000000000000000000000000000
Password: yang007.01
  • Click“Save&Apply“.
  • After the changes made, the chip status is BB-CC-OO.
  • Around 10 minutes, the hash rate will show on the “Miner Status” Page.

Intro and Tutorial for Antminer E3 IMG 09

  • In 5-30 minutes, the worker will show in the pool. Under such settings, you can log into the pool to check the hash rate and the earnings of the miner(the same as Antminer S9 etc.).

Intro and Tutorial for Antminer E3 IMG 07

  • To mine ETC, the settings are the same except that you need to change the URL as the address of ETC pool.

Intro and Tutorial for Antminer E3 IMG 08

2. Using wallet address to mine anonymously

  • Click “Miner Configuration” to enter the configuration page.
  • Configure the “URL“, “User” and “Password” as below:
URL: pool address
User: your wallet address
Password: 123(not important, can be set as anything)

Intro and Tutorial for Antminer E3 IMG 10

  • Correct settings example:
URL: stratum-eth.antpool.com:8008
User: 0x54b2a793dea260599ea867d5dcc103d696f93157
Password: 123
  • Click “Save&Apply
  • After the changes made, the chip status is BB-CC-OO. In around 10 minutes, the hash rate will show on the “Miner Status” page.
  • Use the following link to check your hash speed in the pool and the earnings history of your miner:
ETH: https://www.antpool.com/eth.htm?wallet=your_wallet_address
For Example:
https://www.antpool.com/eth.htm?wallet=0x00Bd4621FFdD84671c4ab6FF598df9B41DA2D149

Intro and Tutorial for Antminer E3 IMG 11

  • In this address, you can check the hashing and earnings history.

Please note: To use other pools, you can also refer to instructions in that pool.



Noise and temperature

We are using a 30㎡ room for the test, the room temperature is 25℃.

The noise level is 50dB without the miner. When the miner is working, at a distance of 10cm, the decibel is 74.4dB. At the distance of 1m, it is 67.7dB.

Intro and Tutorial for Antminer E3 IMG 12

After running for a while, the temperature at the air input is 32.8℃, and 37.6℃ at the air output.

Intro and Tutorial for Antminer E3 IMG 13

On the miner status page, we can see the temperature of the hash board is around 47℃, and chip temperature is around 58℃. Spin speed of the fans is 3000. It’s working well.

Intro and Tutorial for Antminer E3 IMG 14



Hash rate and power consumption

  • Hash rate for mining ETH in Antpool

Intro and Tutorial for Antminer E3 IMG 16

  • Power consumption

Intro and Tutorial for Antminer E3 IMG 15

Rated hash rate of E3 is 190MH/S. In the test run, within 24 hours, the average speed is 200.48MH/S. Rated power consumption is 760w, in the test run, it is 800w, the ratio is 3.7W/M.

  • Earning for mining ETH in Antpool for 24 hours

Intro and Tutorial for Antminer E3 IMG 17

In the test, by PPS mining, the reward of one E3 working 24hours is 0.015ETH.



Conclusion

Rated Hashrate 180 MH/s
Average Speed 200.48 MH/s
Average Power Consumption 733w
Ratio of W/M 3.7 W/M
Average Reward(2018.09.04) ≈ 0.015ETH

In our test, the E3 miner worked well and surely is more efficient than graphic cards with its advantage that its price is lower than graphics.
