This tutorial is intended for the Innosilicon A4+ LTCMaster 620MH with 750w Litecoin Miner which is one of the most powerful litecoin miner of Innosilicon. The hashrate of the A4+ LTCMaster is 620MH while the power consumption is only 750w.



Miner Specifications

Brand	Innosilicon A4+ LTCMaster
Hash Rate	620Mh/s (+-8% performance, can be over-clocked at user’s risk)
Power Consumption	750W (+/-8%, normal mode, at the wall, with 93% efficiency PSU, 25°C temperature )
Cooling	2 x 12038 fan
Network Connection	Ethernet
PSU Recommend	Antminer APW3++ PSU



Official User Manual

• A4plus-master-of-the-world-use-instructions-en.pdf

The official user manual should work fine already.  However, for beginner users, the following details might be helpful.



Get Your Network Ready

The default IP of the miner is “192.168.1.254“. So you need to:

1. Make sure the IP address of your router is “192.168.1.x“(the ‘x’ stands for a number between 1~253). Or you need to change the IP address of your router to “192.168.1.x”
2. Make sure there are no other devices occupying the default IP address of the miner(192.168.1.254). Otherwise, you may can’t login to the configuration page of the miner.

In Windows, please use the “ipconfig” command to find out your network details.

How to find out your network details:

1. Press “Win Key + R“, then a “RUN” box will be shown.
2. Type “cmd” in the text box and then hit the Enter key on your keyboard.
3. A black box with a flashing cursor will open; this is the Command Prompt.
4. Type “ipconfig” and then hit the Spacebar on your keyboard. Then type in the address you’d like to ping and then hit the Enter key on your keyboard. After a bit, you will get the network result. The “Default Gateway” in the result is the IP address of your router.



Miner Connection

• Get your PSU ready. You’ll need a PSU > 750w with 6pin x 9 for the miner. Check here for the Setting-up for PSU.
• For the miner configuration, please connect the miner to the LAN port on the same router which your computer is also connected to. The miner is stand-alone, your computer is just needed for the miner configuration.
• This is the Innosilicon A4+ you will receive from EastShore. For obvious reasons, newly developed miners (by different manufacturers) all look similar which actually makes it easier for users.

• Please check if all the cables on the miner are inserted tightly.
• There are NINE 6PIN ports on the miner(2 ports on each hashing boards, and another one on the controller). All the NINE 6PIN ports are needed.

• Connect the miner to your PSU via the 6pin ports on the miner. All the NINE 6PIN ports on the miner should be connected.  (Don’t forget to connect the 6pin port on the little green controller board)

• Plug in the ethernet cord.
• Miner connection DONE.



Mining Guide

• Power on the miner, wait for about 1~2 minutes.
• The default IP of the miner is “192.168.1.254“. you can log into the miner configuration page for miner configuration via the default IP. Please open your internet browser, such as Google Chrome, IE etc. and type in “192.168.1.254”.

• Go to the “Miner Configuration” page. Click the “Config” button at the left-right corner.

• In the following page, click “Login” button to log into the configuration page. The default password is “12345678“.

• On the next page, you can configure your own mining account. Then click the button “Save” to save and apply the changes. In the configuration page, you don’t need to change any other options.

• The mining will automatically start after a few minutes. Go to the “Miner Status” page and keep refreshing the page until some data (Speed, miner account, pool etc.) is shown on the page (which means the machine has started mining. Generally, the miner needs about 3~7 minutes to start mining).

• You can also refer to the official manual for more details about miner configuration.



Testing video by EastShore



Running More than One Miners

If you are going to run more than one A4+ LTCMaster miners at the same time, you need to:

• Connect and configure miners ONE BY ONE.
• After configuring a miner, you need to CHANGE the default IP of that miner to a different one (DON’T keep the default IP 192.168.1.254). So you can configure another miner via the default IP “192.168.1.254”.

How to change the default IP address of the miner:

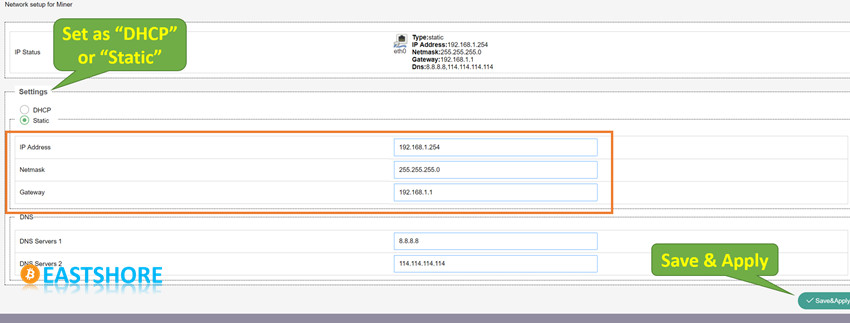

• Click the “Network” tab on the configuration page.

• In the “Settings” section, you can set the IP protocol as “DHCP” or “Static“.
  • For “DHCP”: You will need to scan the IP address of your miner after setting, here is the tutorial for the IP scanning: https://www.eastshoremining.com/how-to-scan-out-the-configuration-ip-address-of-the-miner/
  • For “Static”: You will need to set the IP details in the red rectangle. Don’t set it as “192.168.1.254” which is the default IP.
  • More details about “DHCP” and “Static” here: Difference Between DHCP and Static IP

• Click “Save & Apply” to save the changes. Then log in the configuration page again with your new IP address.



Trouble Shoot

Please refer to the official manual A4plus-master-of-the-world-use-instructions-en.pdf
